M12 Waterproof Connector with Temperature Range -25°C to +85°C Rated Voltage DC60V AC50V and Mating Cycle >100 Times

10
MOQ
$3.25-4.50
цена
M12 Waterproof Connector with Temperature Range -25°C to +85°C Rated Voltage DC60V AC50V and Mating Cycle >100 Times
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Температурная диапазон: -25°C ~ +85°C
Оцененное напряжение: 60 В постоянного тока, 50 В переменного тока
Контактный материал: Латунный, покрытое золото
Сопрягая цикл: >100 раз
Рейтинг тока: 0.5А
Стиль прекращения: Тип пайки/крепление на печатной плате
Устройство к монтажу: Переднее крепление/Заднее крепление/Фланец с 4 отверстиями
Монтажный тип: Держатель PCB/держатель/кабель панели
Количество позиций: 2/3/4/5/6/8/12/17-контактный
Запирать потока: M12*1
Конфигурации PIN: 2, 3, 4, 5, 8, 12, 17 позиций
Варианты кодирования: А, Б, С, D, К, Л, Х, С, Т
Водонепроницаемый рейтинг: IP67/IP68
Пол: Мужской
Тип: Адаптер
Выделить:

Temperature Range -25°C to +85°C M12 Connector

,

Rated Voltage DC60V AC50V M12 Waterproof Connector

,

Mating Cycle >100 Times M12 Circular Connector
Основная информация
Место происхождения: Шен Чжэнь, Китай
Фирменное наименование: RIGOAL
Номер модели: пайка для монтажа на панель m12
Оплата и доставка Условия
Характер продукции
Waterproof IP67 Straight Assembly 4-Pin Sensor Connector Plug Cable Panel Mounted PCB A/D Code Female M12 4 Pin Connector

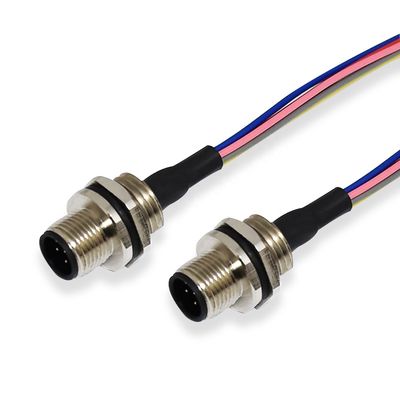

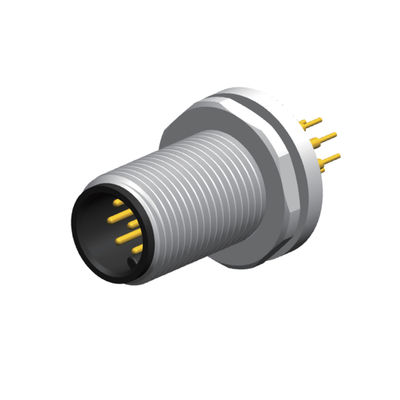

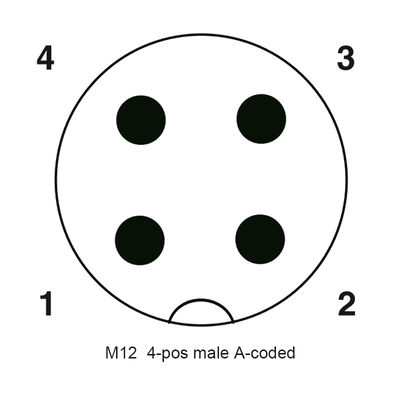

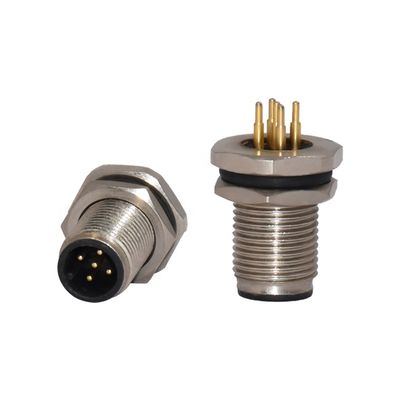

M12 Waterproof Connector with Temperature Range -25°C to +85°C Rated Voltage DC60V AC50V and Mating Cycle >100 Times 0 M12 Waterproof Connector with Temperature Range -25°C to +85°C Rated Voltage DC60V AC50V and Mating Cycle >100 Times 1 M12 Waterproof Connector with Temperature Range -25°C to +85°C Rated Voltage DC60V AC50V and Mating Cycle >100 Times 2 M12 Waterproof Connector with Temperature Range -25°C to +85°C Rated Voltage DC60V AC50V and Mating Cycle >100 Times 3
Product Features
  • M12×1 thread locking mechanism with anti-vibration design
  • Quick connect/disconnect coupling for easy installation
  • Multiple pin configurations available: 2, 3, 4, 5, 8, 12, and 17 positions
  • Various coding options: A, B, C, D, K, L, X, S, T
  • IP67/IP68 waterproof rating for harsh environments
  • Wide temperature range: -25°C to +85°C
  • Multiple mounting options: solder cup or PCB
  • Available in panel mount and distribution versions
  • Offered as loose pieces or pre-made M12 cables
Technical Specifications
Specification Value
Place of Origin Shenzhen, China
Brand Name RIGOAL
Model Number M12 panel mount solder
Type Adapter
Application Electronic
Gender Male
Pins 2P, 3P, 4P, 5P, 6P, 7P, 8P, 12P, 24P
Coding A/B/C/D/K/L/X/S/T Code
Temperature Range -25°C to +85°C
Rated Voltage DC60V AC50V
Contact Material Brass, gold plated
Mating Cycle >100 times
Rated Current 0.5A
Termination Style Solder Type / PCB Mount
Mounting Feature Front Mount / Back Mount / 4 Hole Flange
Mounting Type PCB Mount / Panel Mount / Cable
Number of Positions 2/3/4/5/6/8/12/17 PIN
Packaging & Delivery

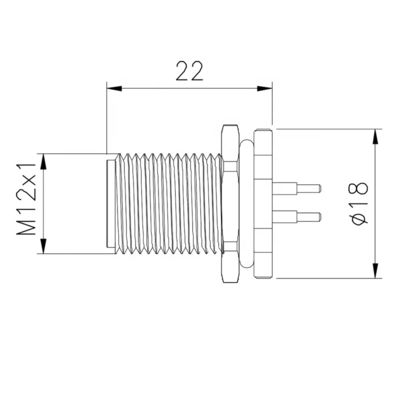

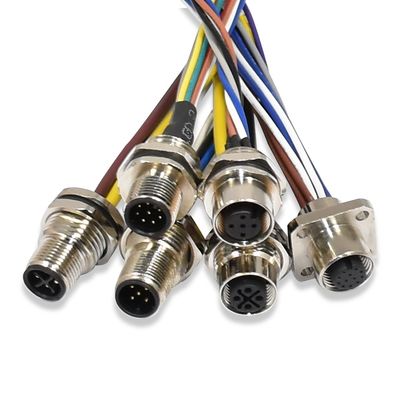

M12 Waterproof Connector with Temperature Range -25°C to +85°C Rated Voltage DC60V AC50V and Mating Cycle >100 Times 4 M12 Waterproof Connector with Temperature Range -25°C to +85°C Rated Voltage DC60V AC50V and Mating Cycle >100 Times 5

Standard packaging includes each unit in a PE bag within a small carton. Custom packaging options available upon request.

Company Profile
M12 Waterproof Connector with Temperature Range -25°C to +85°C Rated Voltage DC60V AC50V and Mating Cycle >100 Times 6 M12 Waterproof Connector with Temperature Range -25°C to +85°C Rated Voltage DC60V AC50V and Mating Cycle >100 Times 7 M12 Waterproof Connector with Temperature Range -25°C to +85°C Rated Voltage DC60V AC50V and Mating Cycle >100 Times 8

Founded in 2013, Rigoal specializes in high-quality waterproof cables and connectors including M8, M12, M16, M23, and D-SUB types. Our products serve industries such as industrial equipment, transportation, medical devices, LED displays, and communication systems. With exports to North America, Europe, and Asia, we maintain a reputation for quality equivalent to leading brands like Phoenix and Molex. Our philosophy emphasizes customer-first service and quality assurance.

Frequently Asked Questions
Who are we?

Based in Guangdong, China since 2014, we serve customers worldwide with a team of 101-200 professionals. Our primary markets include Western Europe, North America, and Oceania.

How do we guarantee quality?

We conduct pre-production samples and final inspections before shipment to ensure product reliability.

What products do we offer?

We specialize in waterproof connectors and cables for industrial applications.

Why choose us?

Our expertise in M-series waterproof connectors and commitment to quality makes us a preferred supplier for industrial applications.

What services do we provide?

We offer flexible delivery terms (FOB, CIF, etc.), multiple payment options, and support in multiple languages to serve global customers.
