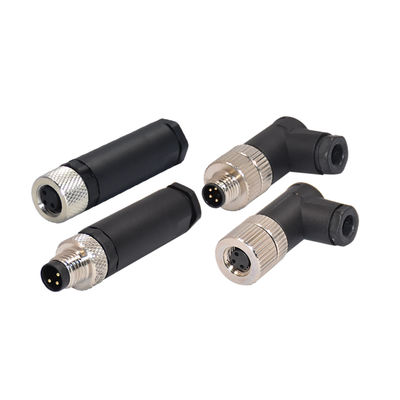

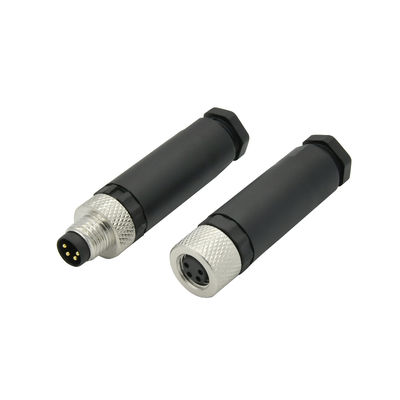

Waterproof M8 3Pin 4Pin 5Pin 6Pin 8Pin Male Female Screw Circular Assembly Connector
Product Features
- M8 circular connector with M8*1.0 screw locking
- Easy quick connect and disconnect coupling

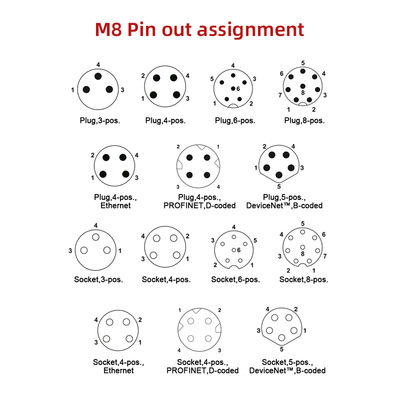

- Pin configurations: 3, 4, 5, 6, 8 positions
- A, B, D coding available

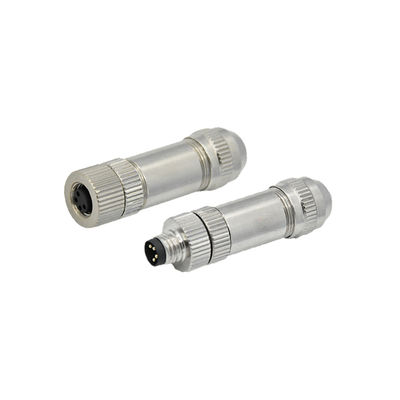

- Shield and un-shield version available with metal or plastic housing
- Meets IP67/IP68 waterproof requirements
- Temperature Range: -25°C ~ +85°C
- PG7 type for 3~6mm cable
Technical Specifications
| Product Name |
Waterproof M8 Assembly Connector |
Gender |
Male and Female |
| Pin |
3/4/5/6/8 pin |
Orientation |

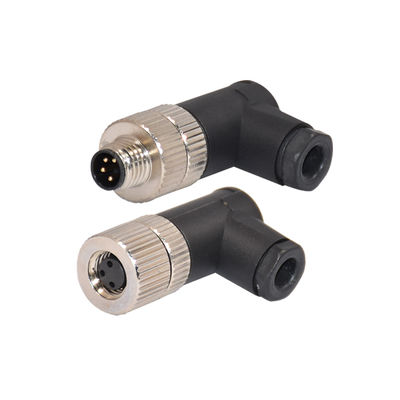

Straight/Right Angle/Y T type |
| Connector Body |
PA66+GF |
Contact Material |
Phosphorus copper with gold plated |
| Shell Material |
Plastic(TPU)/Metal(CuZn) |
Screw/Nut Material |
Brass with nickel plated |
| Cable Jacket |
PVC/PUR |
Rated Voltage |
30V for 5/6/8 pin
60V for 3/4 pin |
| Rated Current |
1.5A/2A/3A/4A |
Certificate |
ISO9001, CE, IP68, ROHS |
| Protection Level |
IP67/IP68 waterproof |
Temperature Range |
-25℃~85℃ |
| Contact Resistance |
≤10mΩ |
Mechanical Operation |
>500 mating cycles |
Packaging & Delivery
Packaging:
1. Our standard packaging:
- About 50pcs put in a plastic box
- Wrap the product with thin film along with the plastic box
- Put all boxes in a small carton (46*30*30 cm)
2. OEM/ODM package is available.
Shipping:
According to customer request, we can choose different convenient shipping methods.
Company Profile
About Us:
Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficient manufacturer. We specialize in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices, wind energy devices, vessel industrial and surrounding the car electronics industry.
Our products are mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany, Netherlands, British, Spain and Asian, Israel. We have agents and customers worldwide who speak highly of our products. Our philosophy is: Customer Foremost, Service First, Quality First.
Frequently Asked Questions
Q1: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013.
Q2: How about the certificates?
A: ISO 9001, ISO14001, TUV, UL, RoHS, REACH etc.
Q3: How about the payment terms?
A: We can do 30% deposit, 70% deposit before shipment and balance against shipment.
Q4: How long is the delivery time?
A: We ensure fast delivery. Generally, it takes 2-5 days for small orders or stock goods; 10-15 days for mass production after receiving your advance payment. Specific delivery time depends on items and quantity.
Q5: What can you buy from us?
A: Waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, etc., such as M5, M8, M12, M16, M23, D-SUB, RJ45, AISG, SP series connectors.
Q6: What services can we provide?
A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, FCA, CPT, DDP, DDU;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
